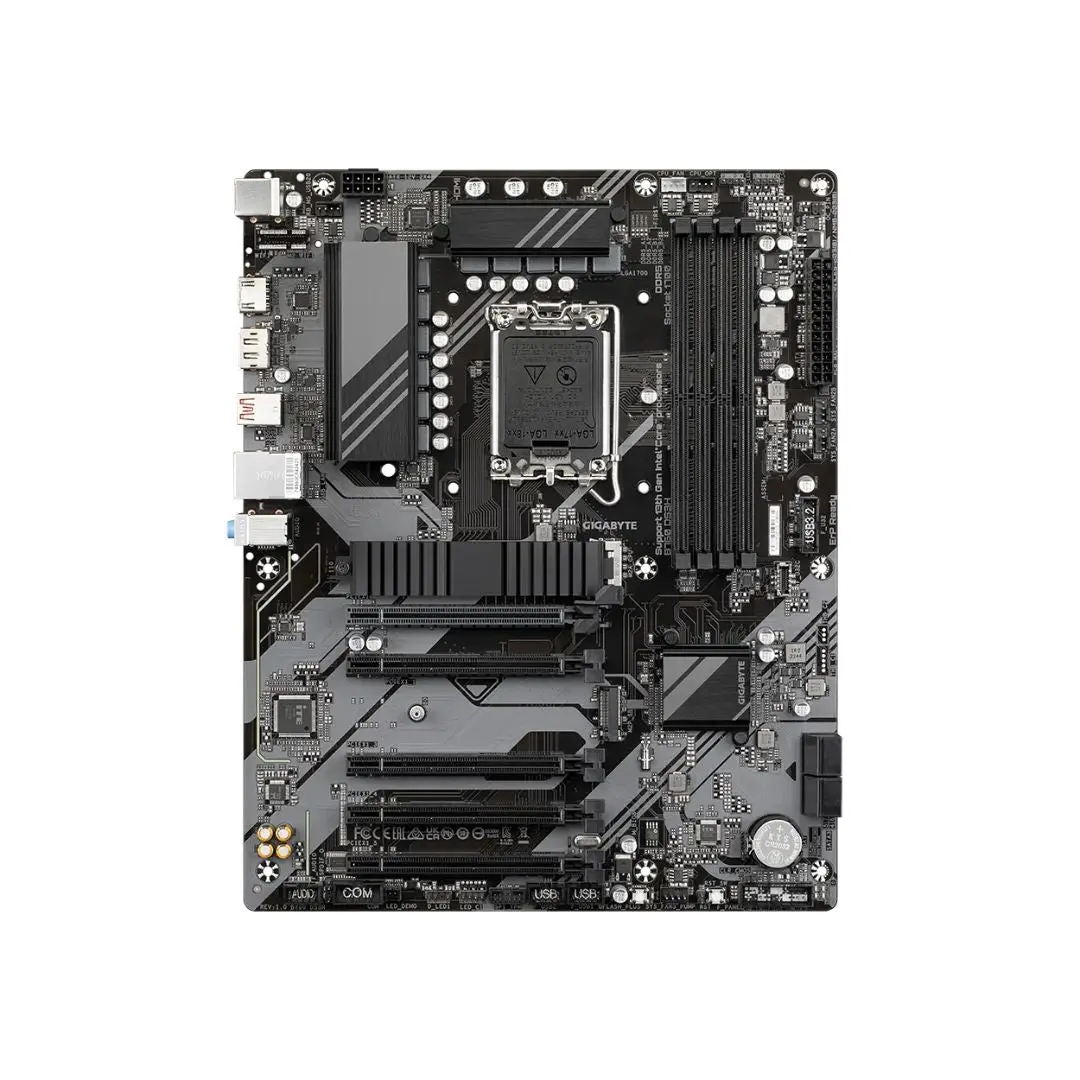

Gigabyte B760 DS3H DDR5 ATX Motherboard

Description

Motherboard Specification

• Processor Support: LGA1700 socket, supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel® B760 Express Chipset
• Memory Support:
  • 14th & 13th Gen Intel® Core™ i9/i7: Up to DDR5 7600(O.C.) MT/s
  • 13th Gen i5/i3 & 12th Gen Intel® Core™: Up to DDR5 4800 MT/s
  • 4 x DDR5 DIMM slots, up to 256GB, dual-channel, XMP support
• Graphics Ports:
  • 1 x D-Sub (1920×1200@60Hz)
  • 1 x HDMI (4096×2160@60Hz, HDMI 2.1)
  • 2 x DisplayPort (4096×2304@60Hz, DP 1.2)
  • Supports up to quad-display
• Expansion Slots:
  • 1 x PCIe 4.0 x16 (CPU)
  • 2 x PCIe 3.0 x1 (Chipset)
• Storage:
  • 2 x M.2 PCIe 4.0 x4 slots (2280)
  • 4 x SATA 6Gb/s, RAID 0/1/5/10
• Ethernet: Realtek® 2.5GbE LAN
• USB:
  • Back Panel: 1 x USB Type-C® (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0
  • Internal: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Audio: Realtek® Audio CODEC, 7.1-channel, S/PDIF Out support
• Internal I/O Connectors:
  • 1 x 24-pin ATX power, 1 x 8-pin ATX 12V
  • 3 x system fan headers, 1 x CPU fan header
  • 1 x addressable LED header, 1 x RGB LED header
  • 1 x front panel header, 1 x front panel audio header
  • 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
• Back Panel I/O Ports:
  • 2 x USB 2.0, 1 x PS/2 keyboard/mouse
  • 1 x D-Sub, 1 x HDMI, 2 x DisplayPorts
  • 3 x USB 3.2 Gen 1, 1 x USB Type-C® (USB 3.2 Gen 2)
  • 1 x RJ-45, 3 x audio jacks
• Form Factor: ATX
