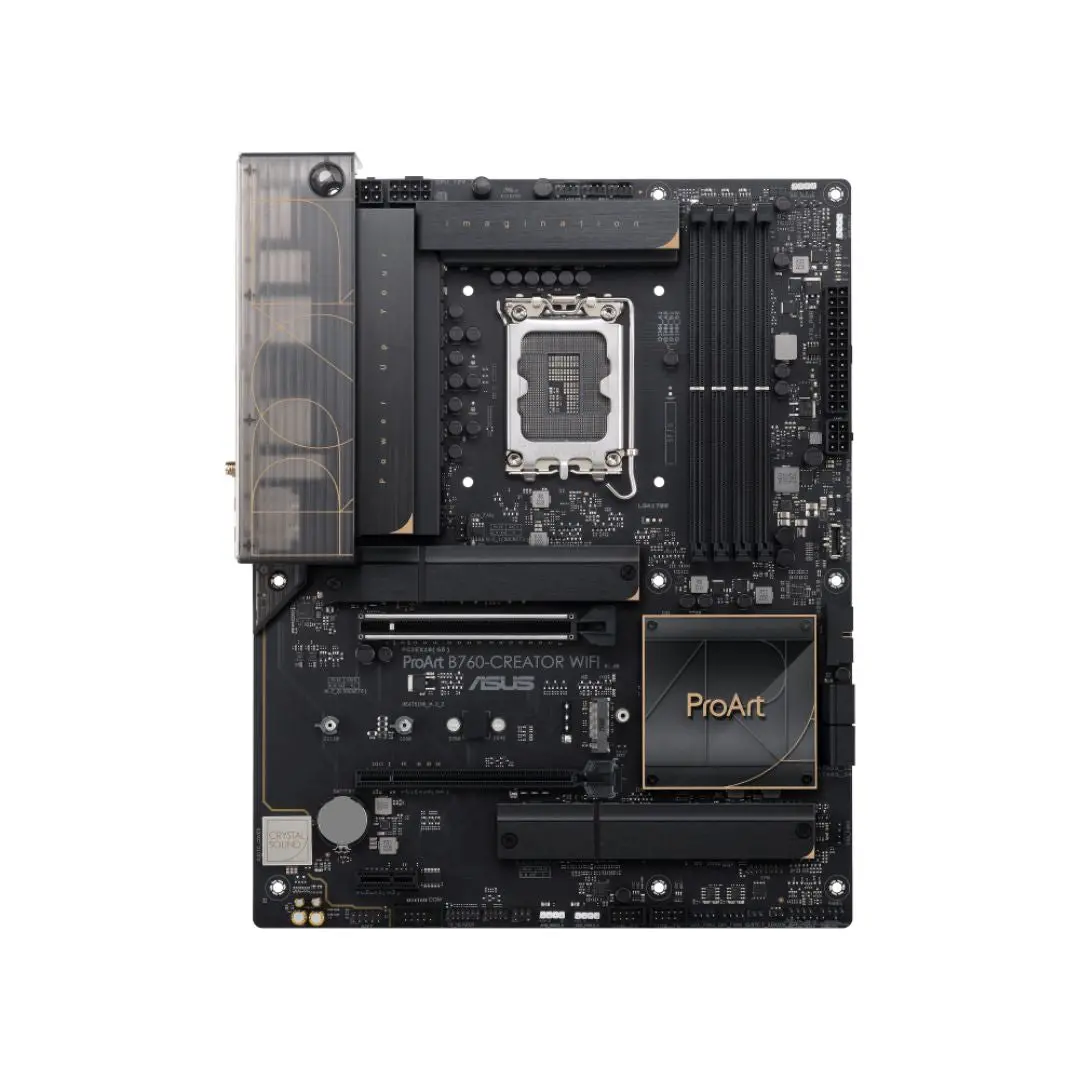

ASUS ProArt B760 Creator WiFi Motherboard for Content Creators

Description

Motherboard Specification

• Chipset: Intel B760
• Socket: LGA1700 – Supports 12th & 13th & 14thGen Intel Core processors
• Form Factor: ATX
• Memory Support: 4 x DDR5 DIMM slots, up to 192GB, up to 7200+ MT/s (OC), Dual Channel, Intel XMP 3.0
• Graphics Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• Audio: Realtek ALC897 – 7.1 Channel HD Audio, Optical S/PDIF out
• Expansion Slots:
– 1 x PCIe 5.0 x16
– 1 x PCIe 4.0 x4
– 1 x PCIe 3.0 x1
• Storage:
– 3 x M.2 (PCIe 4.0 x4)
– 4 x SATA III
– RAID 0/1/5/10 support
• Networking:
– Intel 2.5GbE LAN + 1GbE LAN
– Intel Wi-Fi 6
– Bluetooth 5.2
• USB Ports:
– Rear: USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C
– Internal: USB 2.0, USB 5Gbps, USB 20Gbps Type-C header
• Cooling & Features:
– 12+1 Power Stages (50A)
– Large VRM & chipset heatsinks
– M.2 heatsinks, 6 x PWM fan headers, AIO pump header
– Thunderbolt 4 header, Aura Sync RGB headers
– ProArt Creator Hub software
• OS Support: Windows 11 / Windows 10 64-bit
• Warranty: 3-Year Manufacturer Warranty
