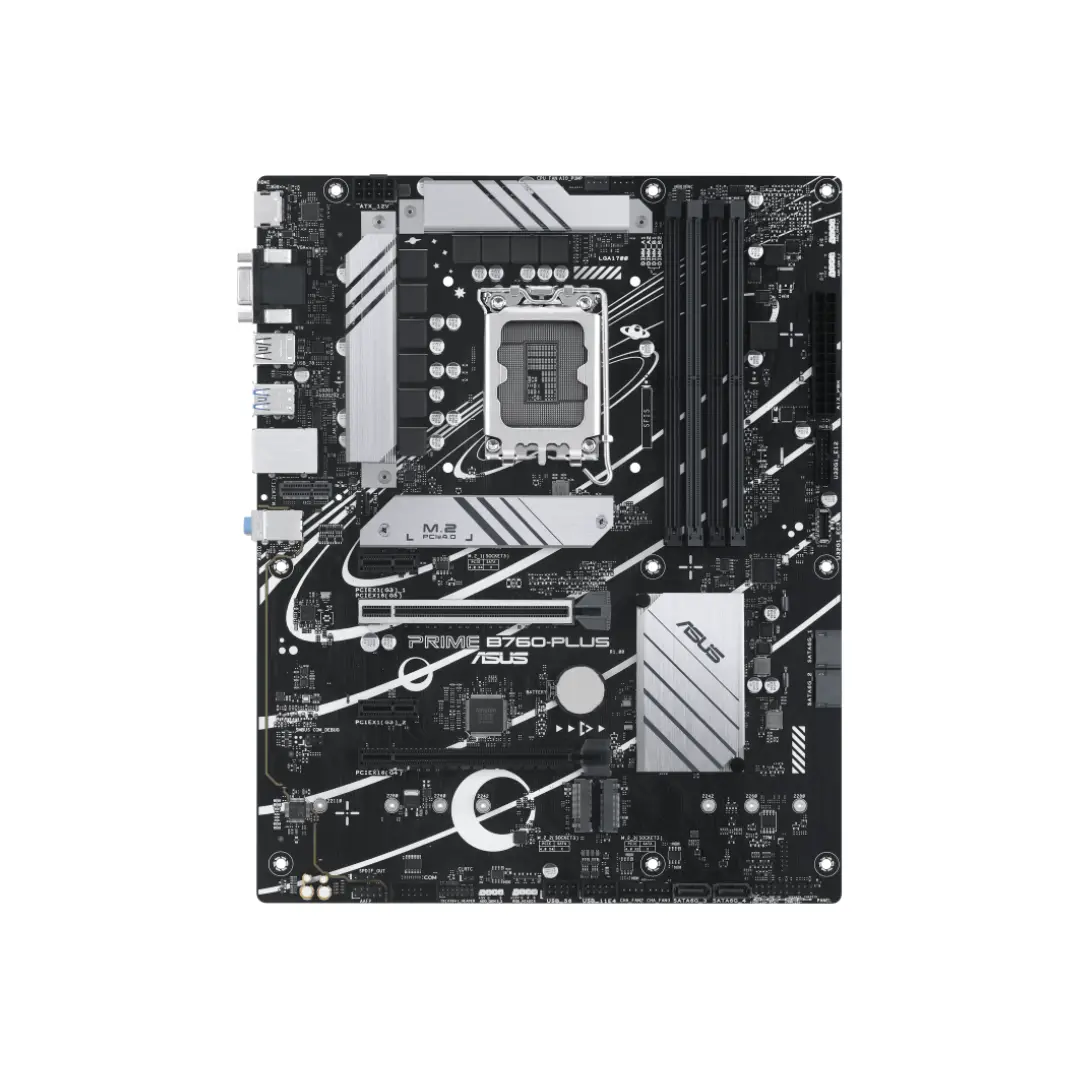

ASUS PRIME B760-PLUS DDR5 Motherboard for 12th & 13th Gen Intel Core Processors

Description

Motherboard Specification

• Processor Support: Intel® LGA1700 for 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel® B760
• Memory Support: DDR5 up to 7200+(OC), Max 192GB, Dual Channel
• Graphics Ports: 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x VGA
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
• Storage: 3 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s
• Ethernet: Realtek 2.5Gb LAN
• Wireless & Bluetooth: M.2 (Key E) slot for Wi-Fi (module sold separately)
• USB: Rear: 1 x USB 3.2 Gen 2×2 (Type-C), 2 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1, 2 x USB 2.0 Front: 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
• Audio: Realtek 7.1 HD Audio CODEC, up to 24-bit/192kHz playback
• Internal I/O Connectors: 3 x M.2, 4 x SATA, 1 x 24-pin ATX, 1 x 8-pin EPS, 3 x Gen 2 ARGB, 1 x RGB header, USB headers, TPM, AIO/CPU fan headers
• Back Panel I/O Ports: 1 x USB-C 3.2 Gen 2×2, 2 x USB-A 3.2 Gen 2, 1 x USB-A 3.2 Gen 1, 2 x USB-A 2.0, 1 x HDMI, 1 x DP, 1 x VGA, 1 x LAN, 3 x Audio jacks
• Form Factor: ATX (30.5 cm x 24.4 cm)
