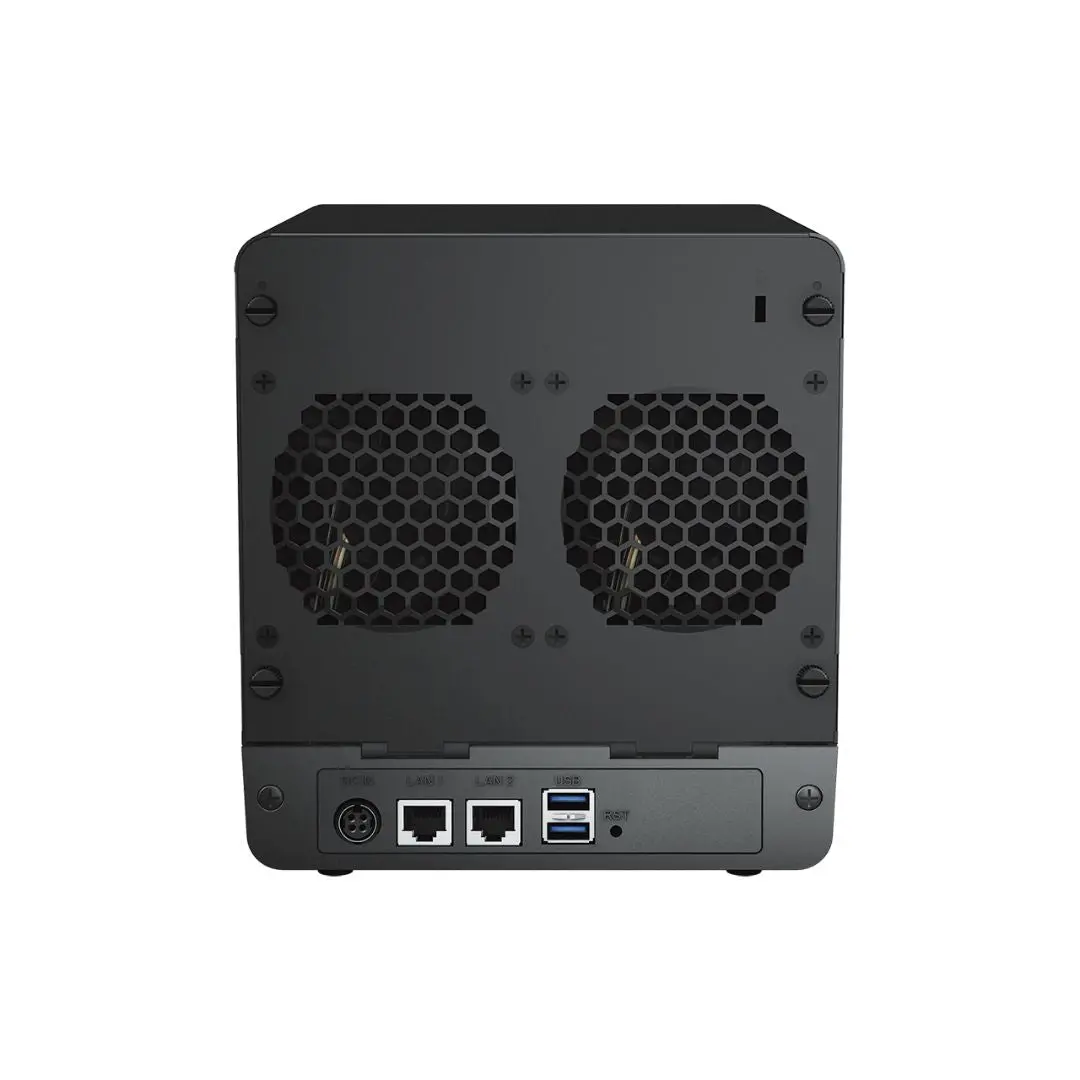

Synology DS423 Network-Attached Storage Server

Description

• Model: Synology DiskStation DS423

• Type: 4‑Bay NAS Server
• CPU: Quad‑core Realtek RTD1619B (64‑bit, ARM Cortex‑A55)
• Memory: 2 GB DDR4 (non‑expandable)
• Drive Bays: 4 × 3.5″/2.5″ SATA HDD/SSD (hot‑swappable)
• Maximum Capacity: Up to 72 TB (using 4 × 18 TB drives)
• RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File System: Btrfs, EXT4
• Network: 2 × Gigabit Ethernet ports (Link Aggregation & Failover support)
• USB Ports: 2 × USB 3.2 Gen 1
• Performance: Sequential read/write up to ~226/224 MB/s
• Power Consumption: ~28 W (access), ~8 W (HDD hibernation)
• Dimensions: 166 × 199 × 223 mm
• Weight: ~2.2 kg
• Features:
– Centralized data storage and private cloud access
– Secure file sharing and syncing across platforms
– Snapshot Replication for ransomware protection
– Supports up to 30 IP cameras via Synology Surveillance Station
– DSM (DiskStation Manager) OS with built‑in backup, multimedia, and collaboration tools
