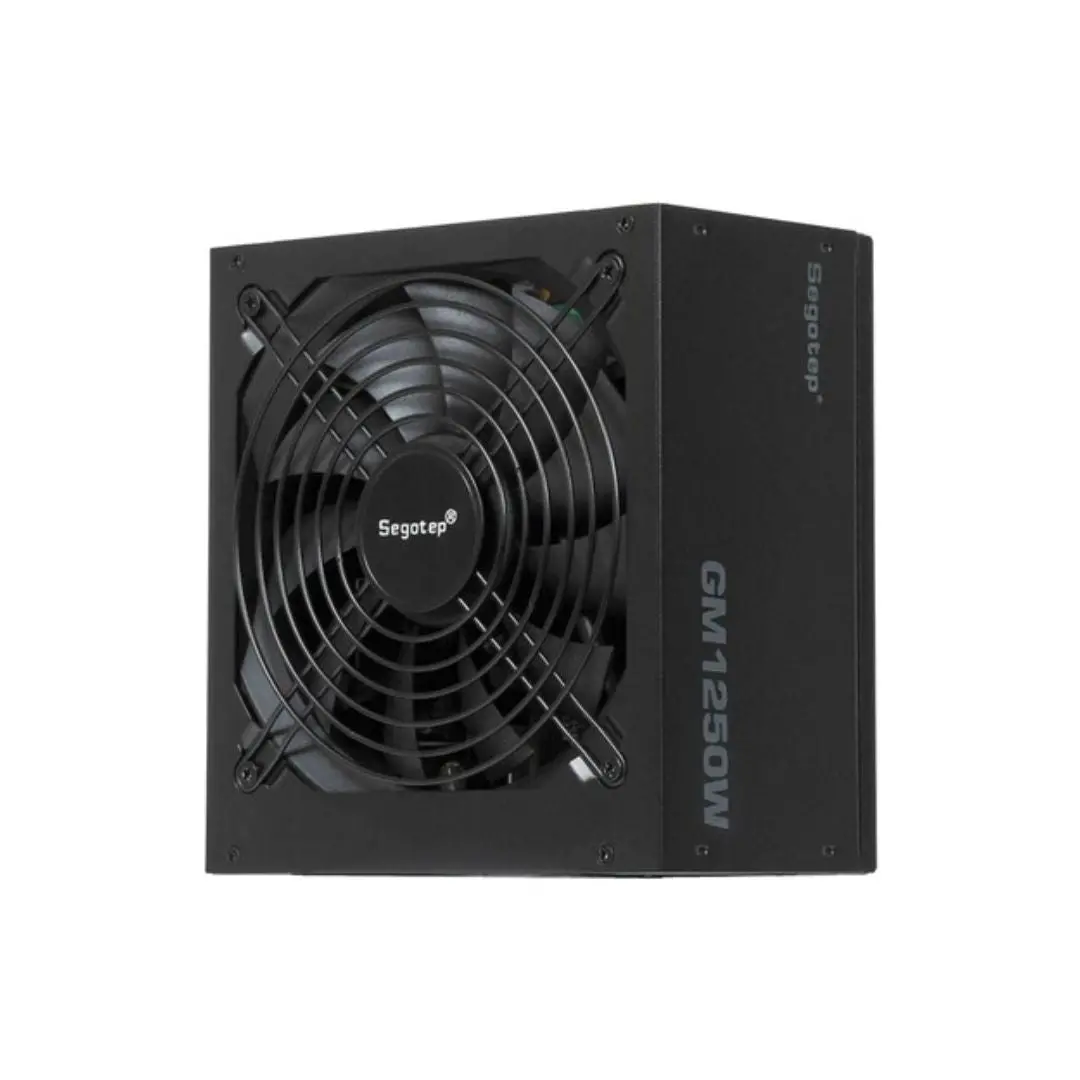

Segotep GM1250W – 1250W 80+ Gold Full Modular Power Supply with PCIe 5.1 & ATX 3.1 Support – Black

Description

Power Supply Specification

• Model: Segotep GM1250W – Black Edition
• Wattage: 1250 Watts continuous output
• Efficiency: 80 Plus Gold certified – up to 91.8% efficiency
• Form Factor: ATX 3.1 compliant
• PCIe Support: PCIe 5.1 – supports up to 600W GPU via 12V-2×6 cable
• Cooling:
– 140mm Hydraulic Bearing Fan
– AI Cooler technology:
• Below 40% TDP: <800 RPM (near silent)
• Above 40% TDP: 800–1500 RPM
• Design Features:
– Resonant LLC topology with DC-to-DC conversion
– Coil whine reduction for quieter operation
– Conformal coating for dust and moisture resistance
• Modularity: Fully modular cable design
• Power Excursion:
– Total: up to 200%
– GPU: up to 300%
• Protection: OVP, UVP, OPP, SCP, OTP
• Dimensions: 180 × 150 × 86 mm
