Description
Motherboard Specification

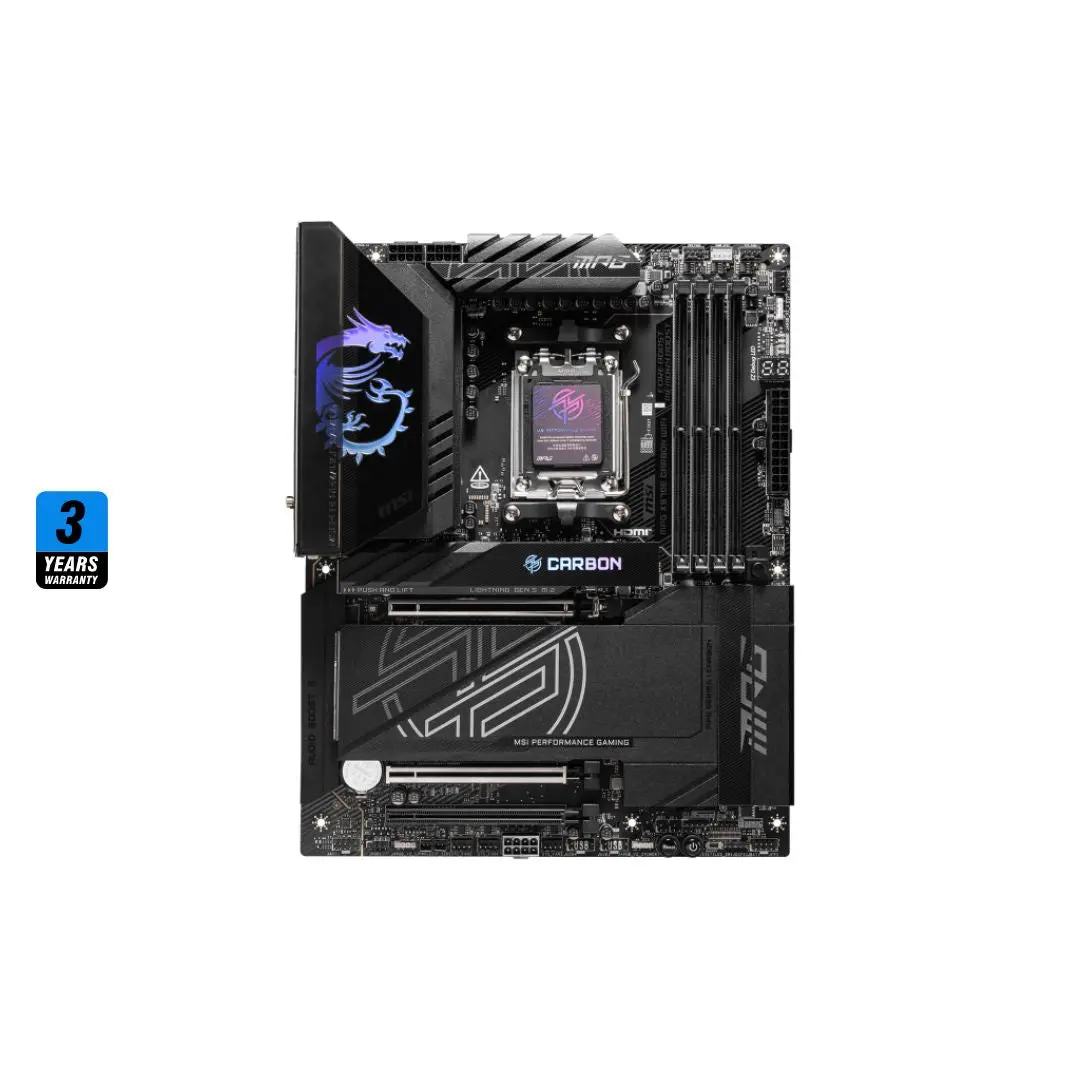

Model: MPG X870E CARBON WIFI
Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset: AMD X870E
Memory Support: 4x DDR5 UDIMM, up to 256GB, 8400+ MT/s (OC), Dual-Channel, non-ECC, AMD EXPO
Graphics Ports: 1x HDMI™ 2.1 (8K@60Hz), 2x USB4® Type-C (DP 1.4, 4K@60Hz)
Expansion Slots: 2x PCIe 5.0 x16/x4, 1x PCIe 4.0 x4
Storage: 4x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s
Ethernet: 1x Realtek® 8126 5G LAN, 1x Realtek® 8125 2.5G LAN
Wireless & Bluetooth: Wi-Fi 7 (2.4/5/6GHz), Bluetooth® 5.4
USB: Rear: 9x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x USB 40Gbps Type-C | Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
Audio: Realtek® ALC4080, 7.1 USB High-Performance Audio, SPDIF Out
Internal I/O Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, 1x CPU Fan, 1x Pump/Combo Fan, 5x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x T_SEN, 3x JARGB_V2, 1x JRGB, USB headers: 4x USB 2.0, 4x USB 5Gbps, 1x USB 20Gbps (Type-C)
Back Panel I/O Ports: HDMI™, 2x USB 40Gbps (Type-C), 2x USB 10Gbps (Type-C), 9x USB 10Gbps (Type-A), 2.5G LAN, 5G LAN, Wi-Fi antenna, Audio connectors, SPDIF, Flash BIOS, Clear CMOS, Smart Button
Form Factor: ATX
