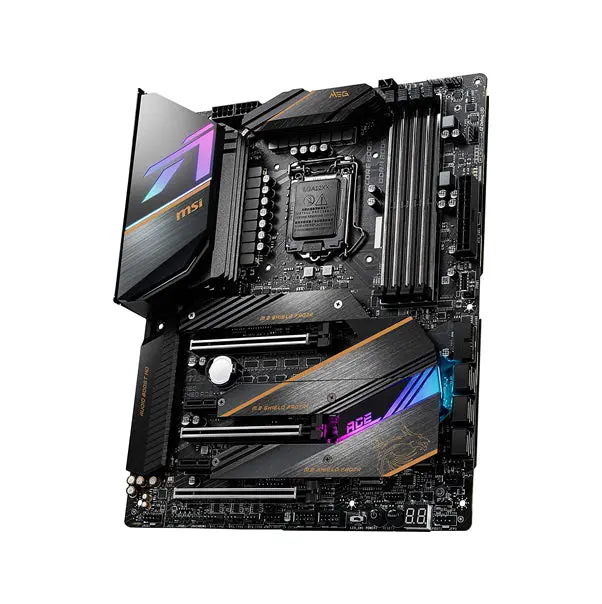

MSI MEG Z490 ACE Motherboard with Built-in Wi-Fi

Description

Motherboard Specification

• Model: MSI MEG Z490 ACE (Wi-Fi)
• Socket: Intel LGA 1200 – supports 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel Z490
• Form Factor: ATX

Memory Support
• 4 × DDR4 DIMM slots (up to 128GB)
• Speeds: up to DDR4-5000+ MHz (OC)
• Dual-channel architecture
• Supports Intel XMP profiles

Expansion Slots
• 3 × PCIe 3.0 x16 (1 × x16, 1 × x8, 1 × x4)
• 2 × PCIe 3.0 x1

Storage Interface
• 3 × M.2 slots with M.2 Shield Frozr (PCIe 3.0 x4/SATA)
• 6 × SATA 6Gb/s ports

Networking
• Intel I225-V 2.5Gb LAN
• Intel Gigabit LAN
• Intel Wi-Fi 6 AX201 (802.11ax)
• Bluetooth 5.1

USB Ports
• Rear I/O:
– 1 × USB 3.2 Gen 2×2 Type-C (20Gbps)
– 2 × USB 3.2 Gen 2 Type-A
– 4 × USB 3.2 Gen 1 Type-A
– 2 × USB 2.0
• Internal Headers:
– USB 3.2 Gen 2 Type-C
– USB 3.2 Gen 1
– USB 2.0

Display Outputs
• 1 × HDMI 1.4

Audio
• Realtek ALC1220 codec
• 7.1-channel HD audio
• ESS SABRE Hi-Fi DAC
• Optical S/PDIF Out

Cooling & Build Features
• Frozr Heatsink Design with Zero Frozr Technology
• MOSFET Baseplate and heatpipe
• Enlarged heatsinks with 7W/mK thermal pads
• Pre-installed I/O shielding
• Steel Armor PCIe slots

RGB & Customization
• Mystic Light RGB
• 2 × RGB headers
• 2 × Addressable RGB headers

Warranty: 3-Year Manufacturer Warranty
Availability: Available now in Iraq
