MSI MAG A750GL 750W 80 PLUS Gold Certified, Fully Modular PSU with PCIe 5.0 Support

Description

• Power Supply Specification
• Model: MSI MAG A750GL PCIE5 – 750W 80 PLUS Gold Full Modular
• Type: ATX Power Supply Unit (PSU)
• Wattage: 750W continuous output
• Efficiency Certification: 80 PLUS Gold
– ≥ 87% efficiency at 20% load
– ≥ 90% efficiency at 50% load
– ≥ 87% efficiency at 100% load
• Form Factor: ATX (Standard size)
• Modular Design: Fully modular
– Only required cables need to be connected
• PCIe 5.0 Support:
– Includes native 12VHPWR cable for RTX 40 series and future GPUs
– Delivers up to 600W via single cable

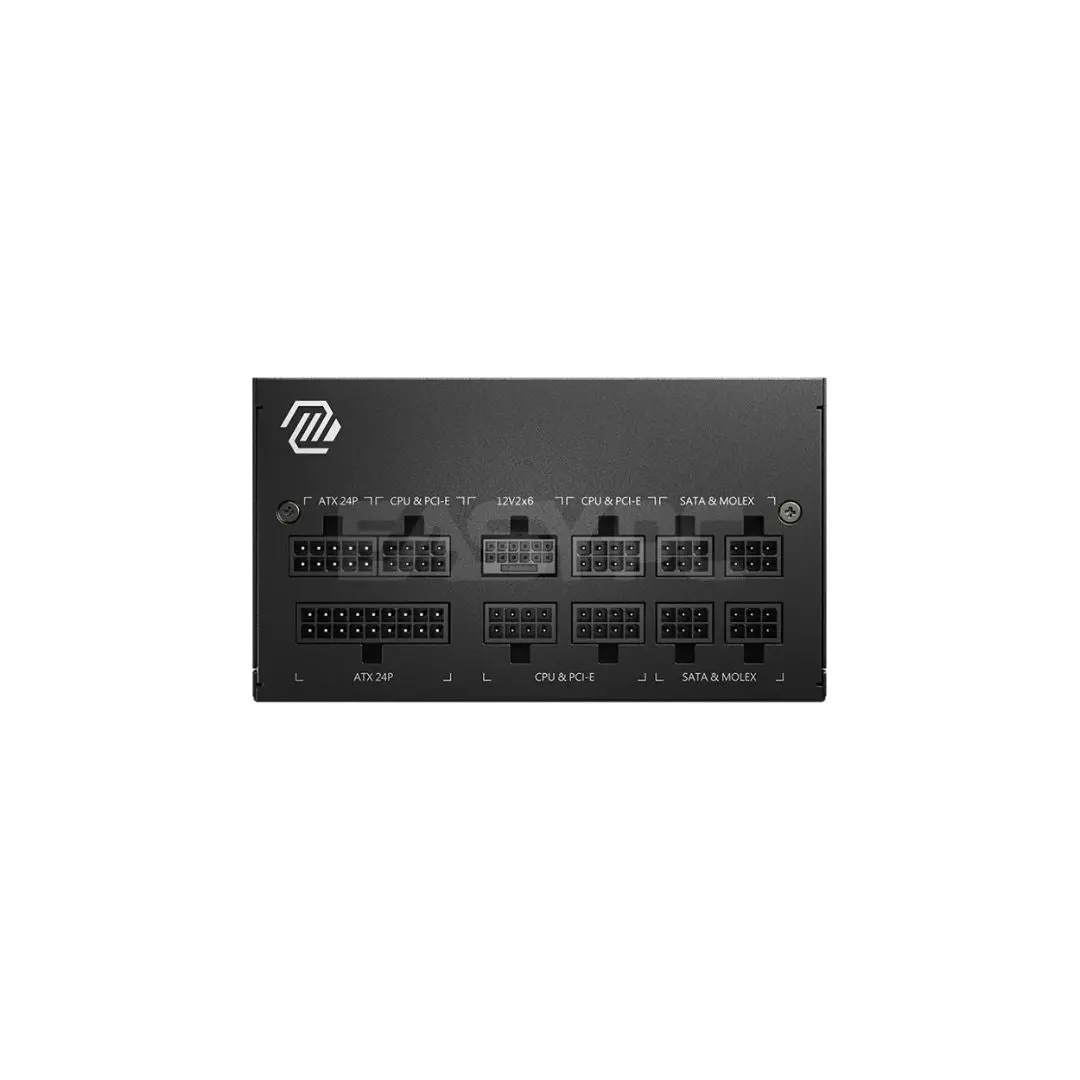

• Connectors:
– 1 × 24-pin ATX
– 2 × 4+4-pin EPS
– 4 × 6+2-pin PCIe
– 1 × 12VHPWR (600W)
– 8 × SATA
– 4 × Molex
• Fan:
– 120mm FDB (Fluid Dynamic Bearing) fan
– Zero RPM mode under low load
– Silent operation with smart thermal control
• Protections:
– OVP / OCP / OTP / SCP / UVP / OPP
– Complies with ATX 3.0 and PCIe 5.0 standards
• Input Voltage: 100–240V AC
• MTBF: >100,000 hours
• Dimensions: 150 × 140 × 86 mm
• Color: Matte black with MSI branding
• Features:
– Japanese capacitors
– Compact 140mm depth for easier cable management
– Ready for high-end gaming and workstation builds
– Compatible with MSI Center software for monitoring (select models)
