Description

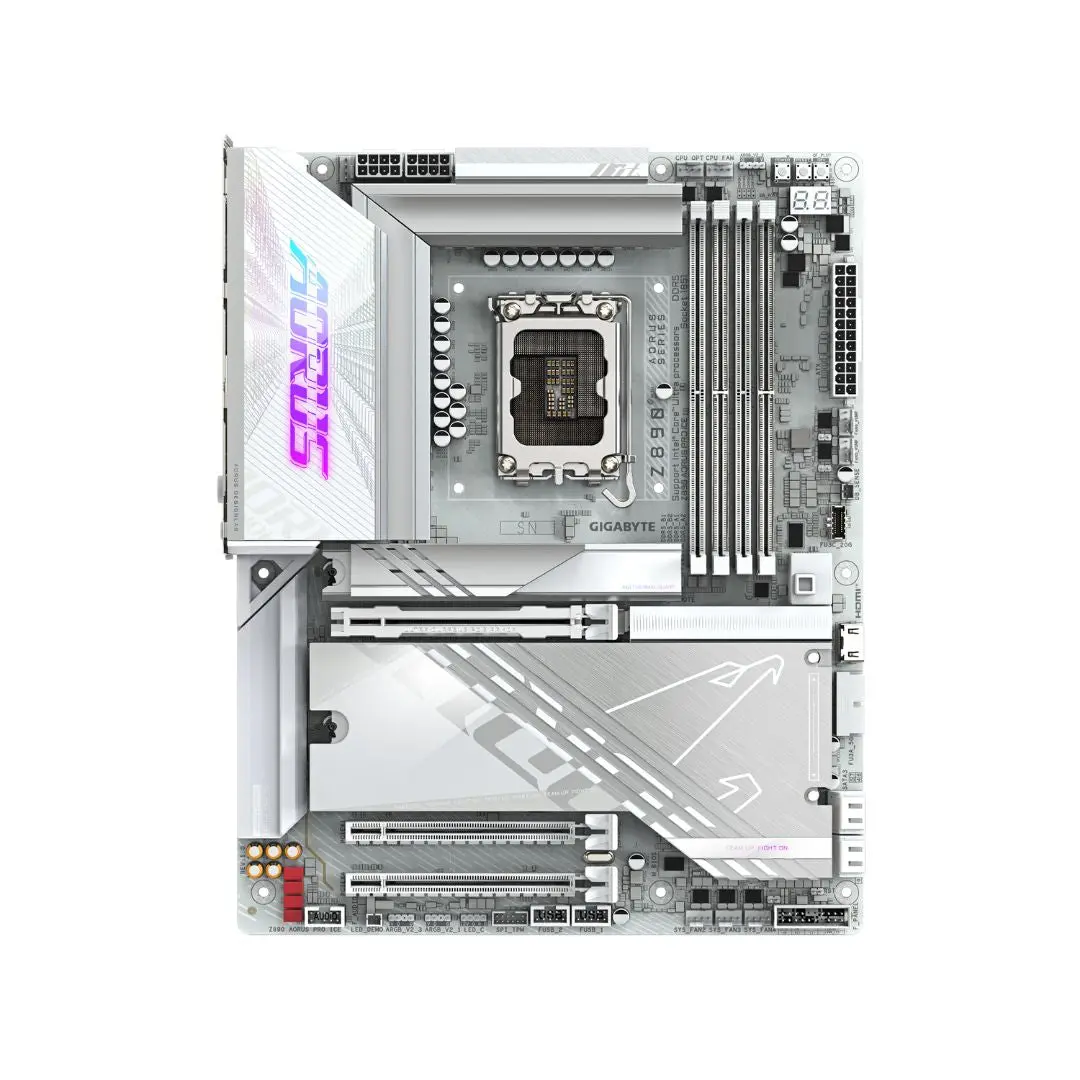

Motherboard Specification
CPU Socket: LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU)
Chipset: Intel® Z890 Express Chipset
Memory:
- Supports DDR5 9500(O.C) to 5600MT/s
- 4 x DDR5 DIMM sockets (up to 256 GB)
- Dual channel architecture
- Supports ECC and non-ECC Un-buffered DIMM
- XMP and CUDIMM support
Graphics:
- Integrated Intel® HD Graphics
- 2 x Thunderbolt™ 4 (USB4® Type-C®) supporting DisplayPort
- 1 x HDMI port (1920×1080@30 Hz, HDMI 1.4)
- Support for up to triple display simultaneously
Audio:
- Realtek® ALC1220 CODEC, High Definition Audio
- 2/4/5.1/7.1-channel configuration
- Supports S/PDIF Out
Networking:
- Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
- Intel® Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be)
- Bluetooth 5.4
Expansion Slots:
- CPU: 1 x PCIe 5.0 x16 (for GPU or NVMe SSD)
- Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1
Storage Interface:
- CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2
- Chipset: 3 x M.2 PCIe 4.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 (SATA support), 4 x SATA 6Gb/s
- RAID: 0, 1, 5, 10 for NVMe and SATA
USB Ports:
- CPU: 2 x Thunderbolt™ 4 (USB Type-C®)
- Chipset: 1 x USB 3.2 Gen 2×2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1
Internal I/O Connectors:
- 24-pin ATX, 2 x 8-pin ATX 12V
- 1 x CPU fan header, 1 x water cooling pump header
- 4 x system fan headers, 2 x system fan/water pump headers
- 3 x addressable RGB Gen2 LED headers, 1 x RGB LED header
- 5 x M.2 connectors, 4 x SATA 6Gb/s connectors
- 1 x HDMI port, 1 x USB Type-C® header
- 1 x Trusted Platform Module header
- 2 x temperature sensor headers
Back Panel I/O Ports:
- 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x Thunderbolt™ 4 (USB Type-C®), 2 x USB 3.2 Gen 2 Type-A
- 1 x RJ-45, 2 x antenna connectors
- 1 x optical S/PDIF Out, 2 x audio jacks
BIOS:
- 256 Mbit flash, AMI UEFI BIOS
- Supports Q-Flash and Q-Flash Plus
Unique Features:
- GIGABYTE Control Center (GCC)
- Norton® Internet Security (OEM)
- LAN bandwidth management software
- Voltage, temperature, fan speed, and noise detection
Operating System Support: Windows 11 64-bit
Form Factor: ATX (30.5 cm x 24.4 cm)
