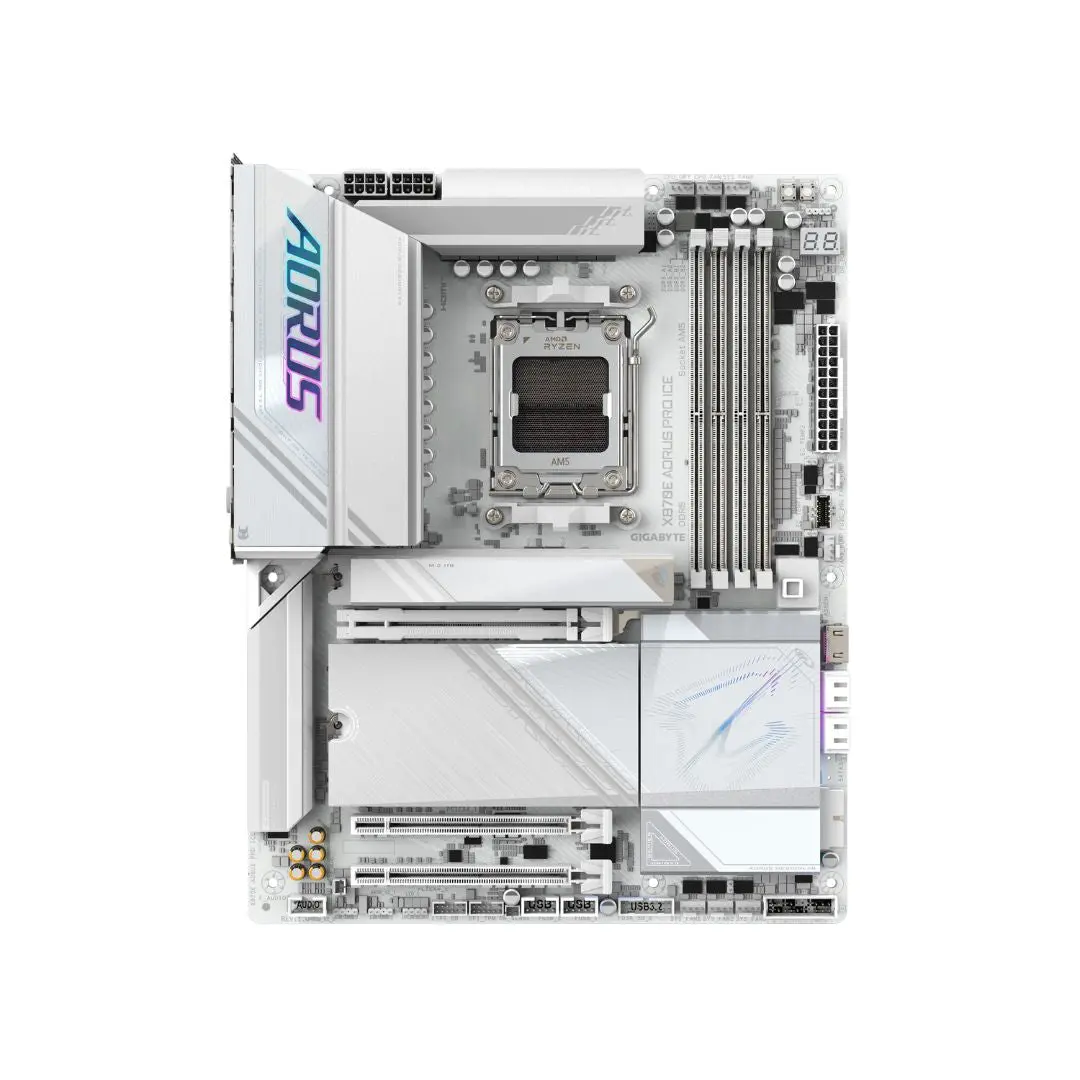

Motherboard Specification – Gigabyte X870E AORUS PRO ICE
Chipset: AMD X870E
Socket: AM5 – Supports AMD Ryzen 7000 / 8000 / 9000 Series
Form Factor: ATX
Memory
• 4 x DDR5 DIMM slots (Dual Channel)
• Up to 256GB system memory
• Supported speeds: DDR5 8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s
• AMD EXPO and Intel XMP support
Graphics
• Integrated AMD Radeon Graphics
• 2 x USB4 Type-C with DisplayPort Alt Mode (3840×2160 @240Hz)
• 1 x HDMI 2.1 (4096×2160 @60Hz)
• 1 x HDMI 1.4 front header (1920×1080 @30Hz)
Audio
• Realtek ALC1220 HD Audio Codec
• Supports 2/4/5.1/7.1-channel output
• Optical S/PDIF Out
Networking
• Realtek 2.5GbE LAN
• Qualcomm Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
• Bluetooth 5.4
Expansion Slots
• 1 x PCIe 5.0 x16 (reinforced UD Slot X)
• 1 x PCIe 4.0 x4
• 1 x PCIe 3.0 x4
Storage Interface
• 3 x M.2 PCIe 5.0 x4
• 1 x M.2 PCIe 4.0 x4
• 4 x SATA III 6Gb/s
• RAID 0, 1, 5, 10 support
USB Ports
• 2 x USB4 Type-C (rear)
• 3 x USB 3.2 Gen 2 Type-A (red, rear)
• 1 x USB 3.2 Gen 2×2 Type-C
• 8 x USB 3.2 Gen 1 (4 rear, 4 internal)
• 6 x USB 2.0/1.1 (2 rear, 4 internal)
Internal I/O Connectors
• 1 x 24-pin ATX main power
• 2 x 8-pin ATX 12V power
• 1 x CPU fan, 1 x CPU/water pump, 4 x system fan, 2 x system fan/water pump
• 3 x RGB Gen2 headers, 1 x RGB LED header
• 4 x SATA, 4 x M.2
• 1 x front panel, 1 x front audio
• 1 x USB Type-C (Gen 2×2), 2 x USB 3.2 Gen 1, 2 x USB 2.0
• 1 x noise detection, 1 x HDMI
• 1 x TPM header, 1 x power button, 1 x reset button
• 2 x temperature sensor headers, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel I/O Ports
• 2 x USB 2.0
• 4 x USB 3.2 Gen 1
• 2 x USB4 Type-C
• 3 x USB 3.2 Gen 2 Type-A (red)
• 1 x HDMI
• 1 x RJ-45 LAN
• 2 x antenna connectors
• 1 x optical S/PDIF Out
• 2 x audio jacks
• 1 x Q-Flash Plus button
BIOS
• AMI UEFI BIOS, 256 Mbit flash
Unique Features
• EZ-Latch Plus for tool-less PCIe and M.2 installation
• Sensor Panel Link for in-chassis display integration
• GIGABYTE Control Center (GCC)
• Q-Flash and Smart Backup
Operating System Support
• Windows 11 64-bit (SV3 required for full Wi-Fi 7 functionality)
