Description

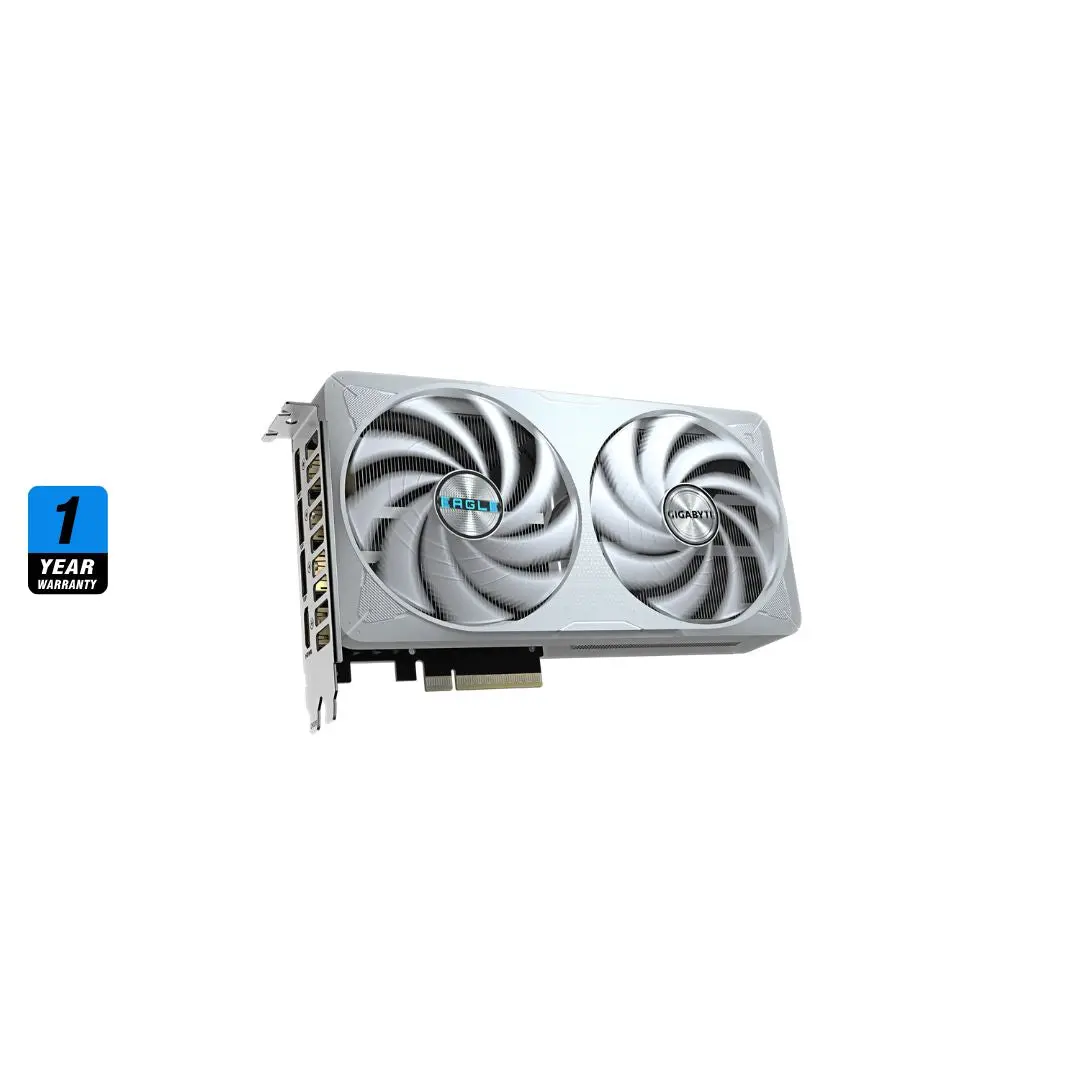

GeForce RTX™ 5060 Ti
Core Architecture & Performance
-
GPU Core Clock:
-
Reference: 2572 MHz
-
Your Variant (OC): 2617 MHz (Likely a factory-overclocked model from AIB partners like ASUS/MSI).
-
-
CUDA Cores: TBD (Expected to be ~30-40% more than RTX 4060 Ti’s 4352 cores).
-
Memory:
-
Size: 8GB GDDR7 (Next-gen memory, significant bandwidth boost).
-
Speed: 28 Gbps (Vs. RTX 4060 Ti’s 18 Gbps GDDR6).
-
Bus Width: 128-bit (Compensated by GDDR7’s high bandwidth).
-
Estimated Bandwidth: ~448 GB/s (Calculated: 28 Gbps × 128-bit ÷ 8).
-
Compatibility & Power
-
Interface: PCIe 5.0 x16 (Future-proof for next-gen motherboards).
-
Recommended PSU: 650W (Higher than RTX 4060 Ti’s 550W, suggesting increased TDP).
-
Power Connector: 1x 8-pin (May support PCIe 5.0 12VHPWR adapters).
Display & Connectivity
-
Max Resolution: 7680×4320 (8K).
-
Outputs:
-
3x DisplayPort 2.1b (Supports 8K@120Hz with DSC).
-
1x HDMI 2.1b (4K@144Hz, 8K@60Hz, VRR).
-
-
Multi-Monitor: 4 displays simultaneously.
Physical Design
-
Dimensions (L×W×H): 215 × 122 × 40 mm (Slightly larger than RTX 4060 Ti).
-
Form Factor: ATX (Fits most mid-tower cases).
Software & APIs
-
DirectX: 12 Ultimate (Full ray tracing, mesh shading support).
-
OpenGL: 4.6.
Included Accessories
-
Quick Guide (No mention of adapters; may require separate 12VHPWR cable).
