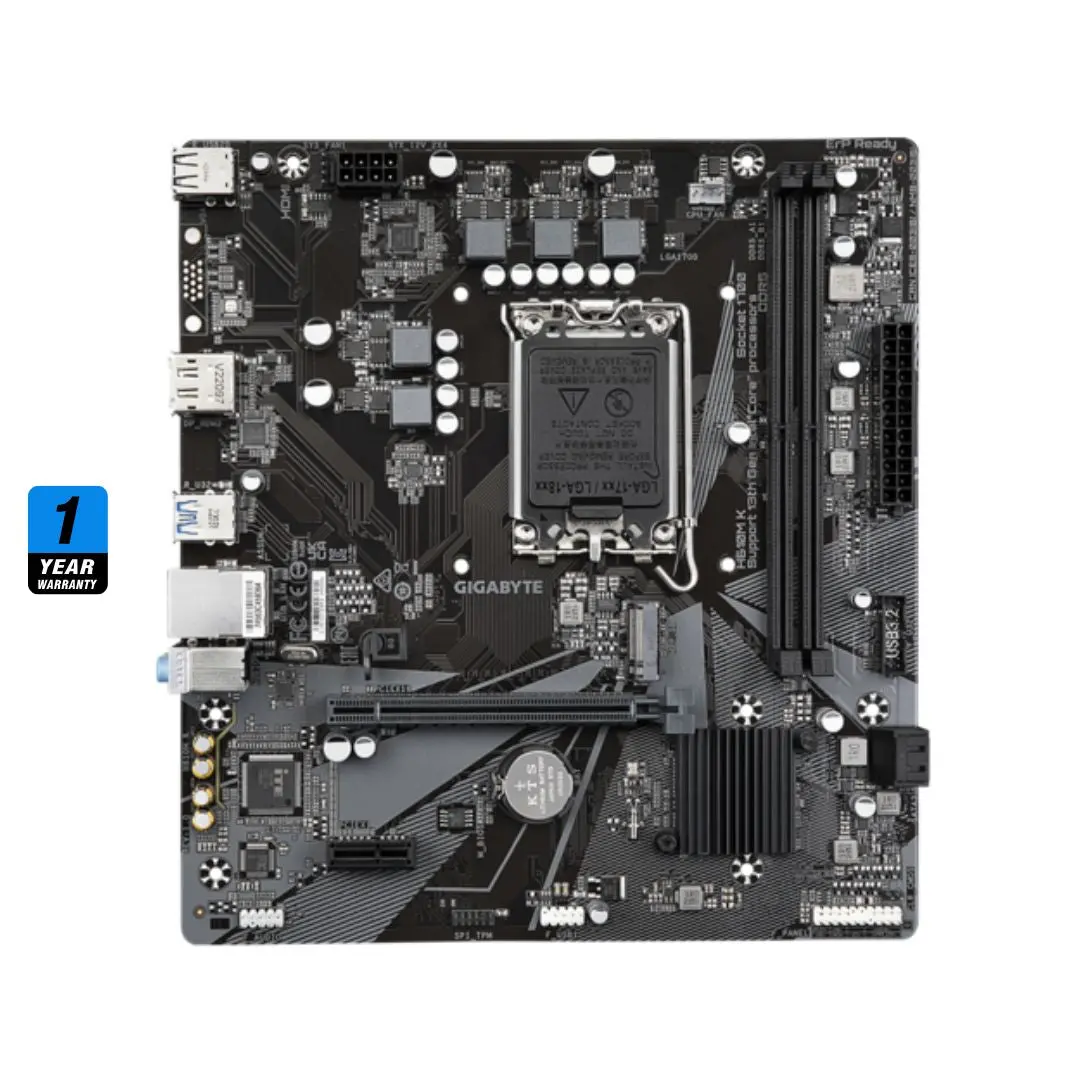

Gigabyte H610M K DDR5 Micro-ATX Motherboard for 12th & 13th Gen Intel Core Processors

Description

Motherboard Specification

• Processor Support :- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• Chipset :- Intel® H610 Express Chipset
• Memory Support :- Up to 128GB DDR5, dual channel, ECC/non-ECC Un-buffered DIMMs, XMP support
• Graphics Ports :- 1 x HDMI (4096×2160@60Hz), 1 x DisplayPort (4096×2304@60Hz)
• Expansion Slots :- 1 x PCIe x16 (Gen 4.0), 1 x PCIe x1 (Gen 3.0)
• Storage :- 1 x M.2 PCIe 3.0 x4/x2, 2 x SATA 6Gb/s
• Ethernet :- Realtek® GbE LAN (1 Gbps)
• Wireless & Bluetooth :- Not included
• USB :- 4 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
• Audio :- Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio
• Internal I/O Connectors :- 24-pin ATX, 8-pin ATX 12V, CPU/system fan headers, M.2, SATA, USB headers, TPM, Clear CMOS
• Back Panel I/O Ports :- HDMI, DisplayPort, 2 x USB 3.2 Gen 1, 4 x USB 2.0, RJ-45, 3 x audio jacks
• Form Factor :- Micro ATX; 23.0cm x 21.5cm
