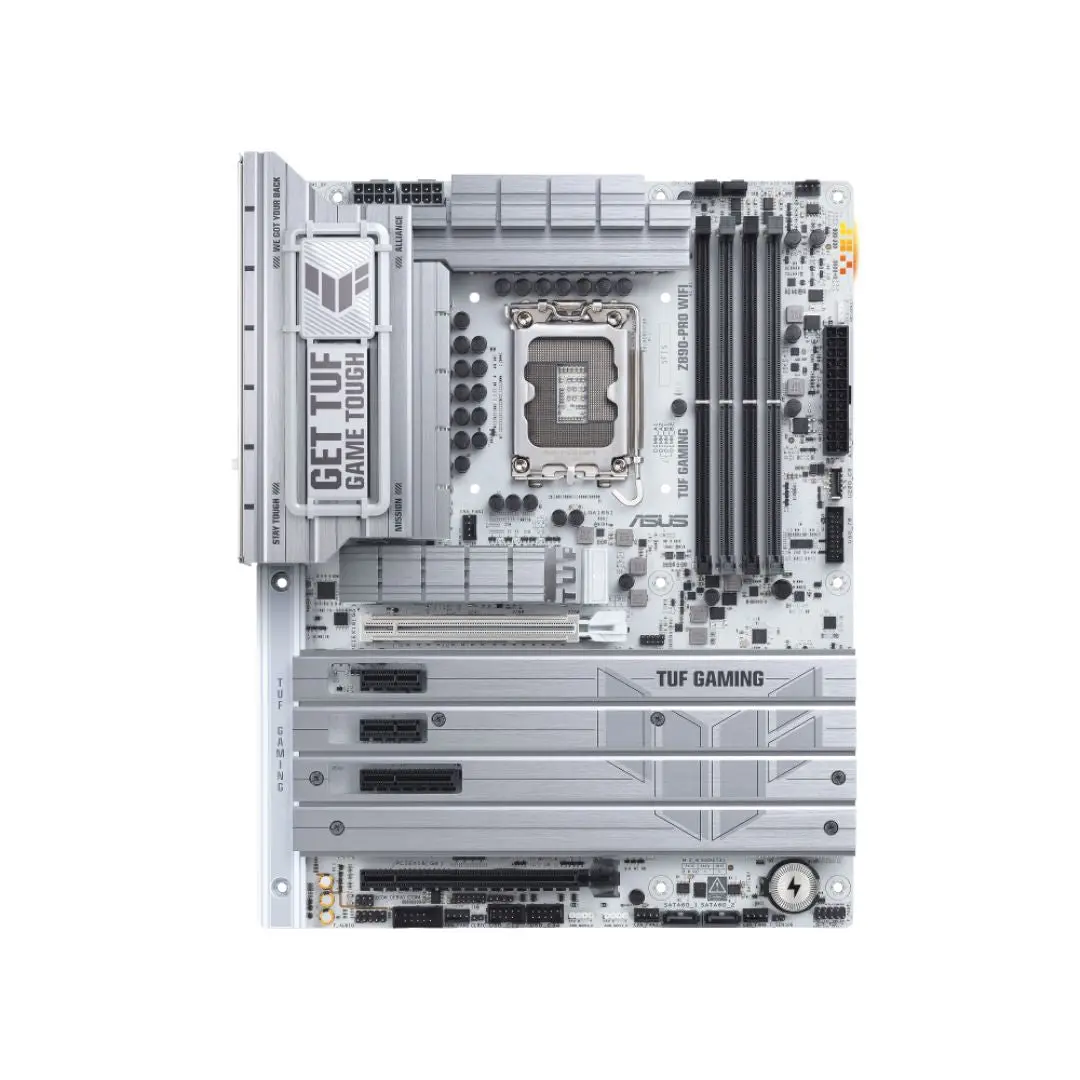

ASUS TUF Gaming Z890 Pro WiFi Motherboard

Description

Motherboard Specification

• Model: ASUS TUF GAMING Z890-PRO WIFI
• Socket: Intel LGA 1851 – supports Intel Core™ Ultra Series 2 (Arrow Lake-S) processors
• Chipset: Intel Z890
• Form Factor: ATX
• Power Design:
– 16+1+2+1 DrMOS power stages (80A)
– ProCool connectors, 8-layer PCB, military-grade components
• Memory Support:
– 4 × DDR5 DIMM slots (up to 256GB)
– Speeds: up to DDR5-9066+ (OC)
– Dual-channel architecture
– Supports Intel XMP & ASUS AEMP III profiles
• Expansion Slots:
– 1 × PCIe 5.0 x16 (SafeSlot with Q-Release Slim)
– 1 × PCIe 4.0 x16 (x4 mode)
– 1 × PCIe 4.0 x4
– 2 × PCIe 4.0 x1
• Storage Interface:
– 4 × M.2 slots:
• 1 × PCIe 5.0 x4 (2280)
• 1 × PCIe 4.0 x4 (2280)
• 1 × PCIe 4.0 x4 (22110)
• 1 × PCIe 4.0 x4 & SATA (2280)
– 4 × SATA 6Gb/s ports
• Networking:
– Intel 2.5Gb Ethernet
– Wi-Fi 7 (802.11be)
– Bluetooth 5.4
• USB Ports:
– Rear I/O:
• 2 × Thunderbolt 4 Type-C (40Gbps)
• 6 × USB 3.2 Gen 2 Type-A (10Gbps)
• BIOS Flashback button
– Front I/O:
• USB 3.2 Gen 2×2 Type-C (20Gbps)
• USB 3.2 Gen 1 & USB 2.0 headers
• Display Outputs:
– 1 × HDMI 2.1
– 1 × DisplayPort 2.1
• Audio:
– Realtek ALC1220 codec
– Optical S/PDIF Out
– 5 × Audio jacks
• Cooling Features:
– Large VRM heatsinks
– M.2 heatsinks with Q-Latch, Q-Slide
– Hybrid fan headers
– AI Cooling II
• Exclusive Features:
– AI Advisor, AI Overclocking, AI Networking II
– NPU Boost (1-click NPU overclocking)
– Q-Antenna, FlexKey button
