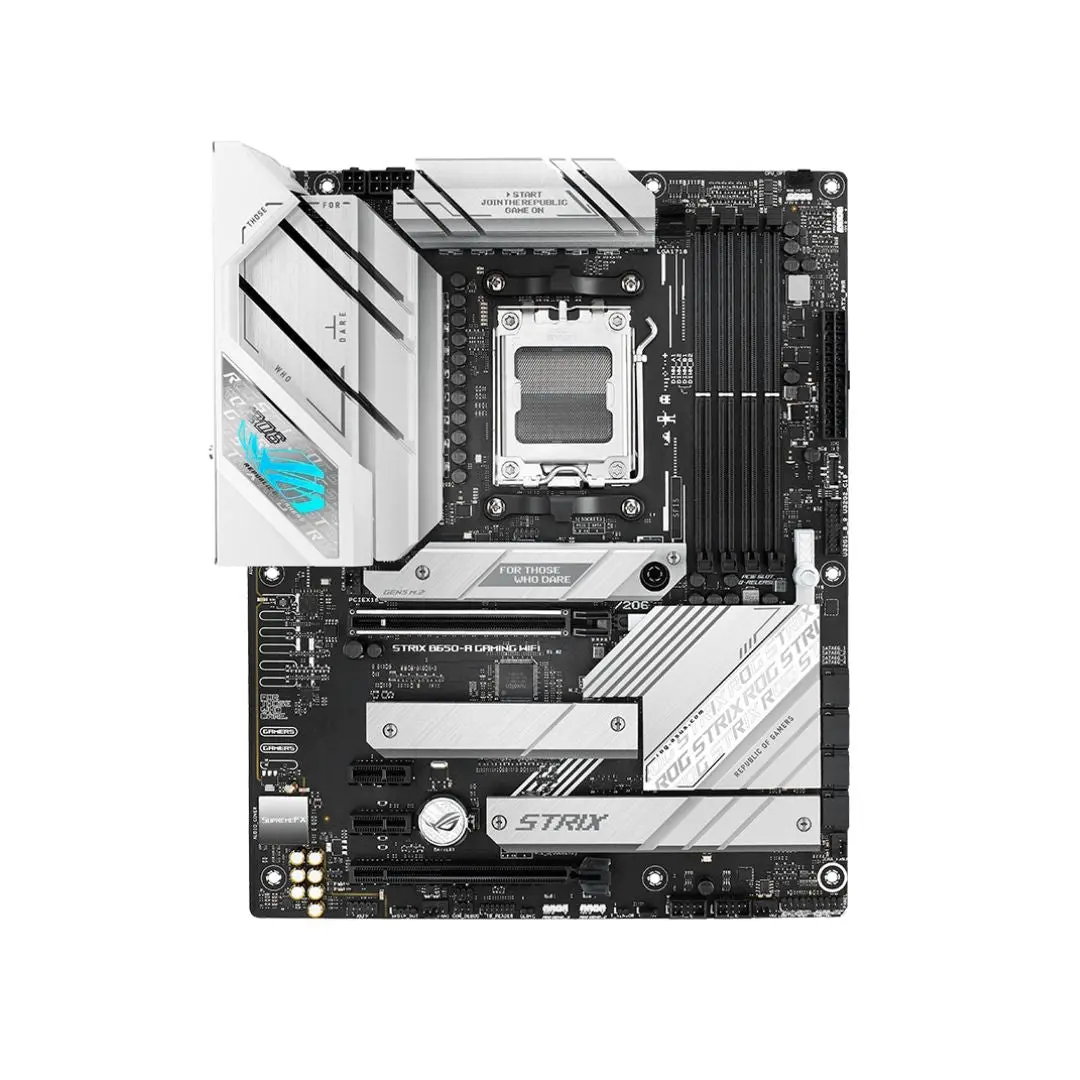

ASUS ROG Strix B650-A WiFi Gaming Motherboard for AMD AM5 Socket

Description

• • Motherboard Specification
  • Model: ASUS ROG STRIX B650-A GAMING WIFI
  • Chipset: AMD B650
  • CPU Support:
  – AMD Ryzen™ 7000 Series (AM5 socket)
  – Supports future AM5 processors
  • Form Factor: ATX
  • Memory Support:
  – 4 × DDR5 DIMM slots
  – Up to 128GB total capacity
  – Up to 6400+ MT/s (OC)
  – Dual-channel architecture
  – ECC & non-ECC, un-buffered memory
  • Expansion Slots:
  – 1 × PCIe 5.0 x16 (CPU)
  – 1 × PCIe 4.0 x16 (Chipset, x4 mode)
  – 1 × PCIe 3.0 x1
  • Storage:
  – 2 × M.2 PCIe 5.0/4.0 x4 (NVMe only)
  – 4 × SATA 6Gb/s ports
  • Graphics Output:
  – 1 × HDMI 2.1
  – 1 × DisplayPort 1.4
  • Audio:
  – ROG SupremeFX 7.1 Surround Sound
  – ALC4080 codec + Savitech amplifier
  – Premium capacitors and shielding
  • Networking:
  – Intel Wi-Fi 6E (802.11ax)
  – Bluetooth 5.2
  – 2.5Gb Ethernet (Realtek RTL8125)
  • USB Ports:
  – Rear I/O:
  • 1 × USB 3.2 Gen 2×2 Type-C
  • 3 × USB 3.2 Gen 2 Type-A
  • 4 × USB 2.0
  – Internal Headers:
  • 1 × USB 3.2 Gen 2 Type-C
  • 2 × USB 3.2 Gen 1
  • 2 × USB 2.0
  • Internal Connectors:
  – 1 × 24-pin ATX main power
  – 1 × 8-pin + 1 × 4-pin CPU power
  – 6 × fan headers
  – 2 × ARGB headers
  – 2 × RGB headers
  – Front panel audio, TPM, Thunderbolt header
  • BIOS:
  – 256Mb UEFI AMI BIOS
  – ASUS BIOS FlashBack™
  • Features:
  – AI Cooling II, AI Networking
  – Q-LED diagnostic indicators
  – Pre-mounted I/O shield
  – M.2 Q-Latch tool-less design
  – Armoury Crate & Aura Sync RGB
  • Dimensions: 305 × 244 mm
  • Color: White and silver accents
