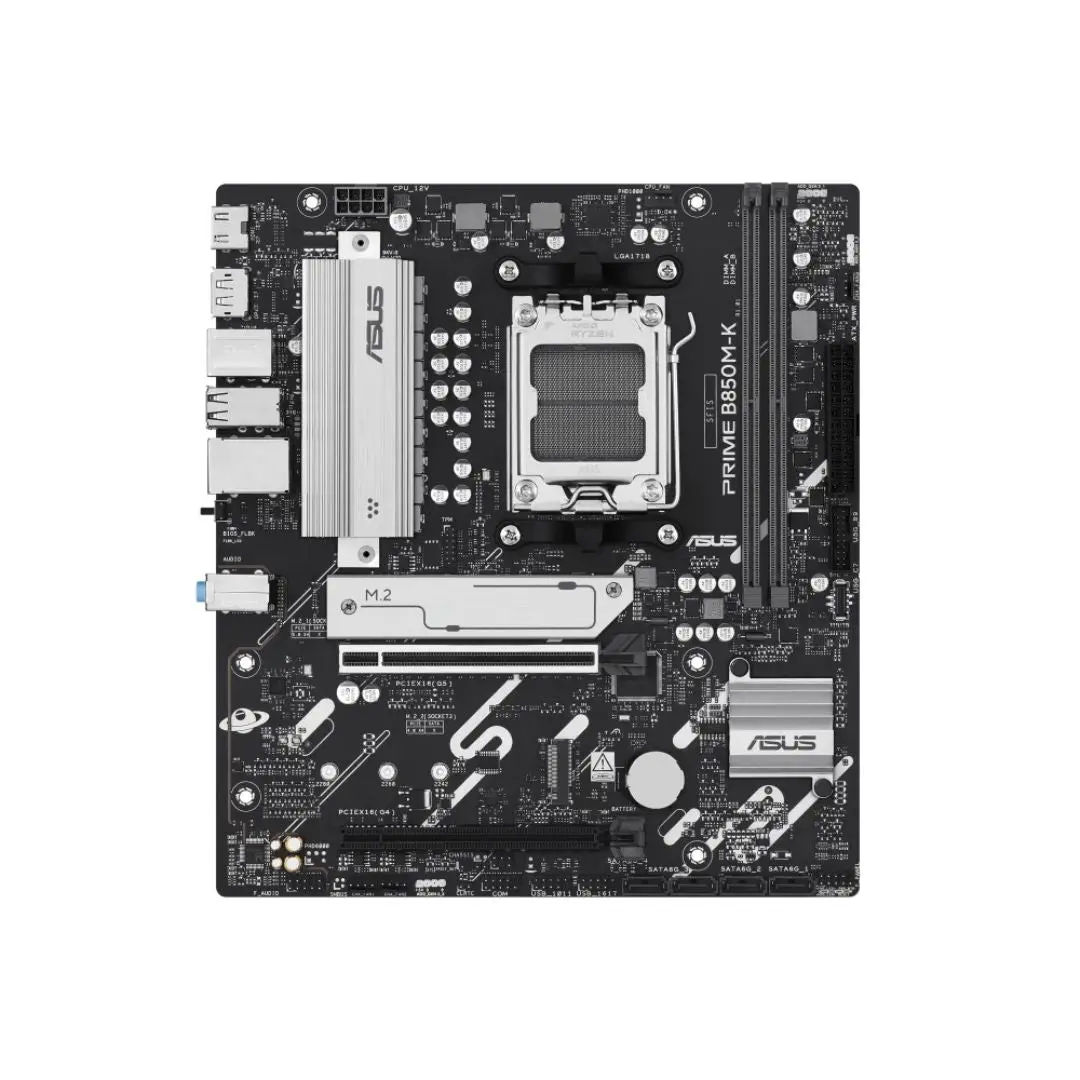

ASUS Prime B850M-K AM5 Micro-ATX Motherboard

Description

• • Model: ASUS PRIME B850M-K – Micro-ATX Motherboard
  • Chipset: AMD B850
  • CPU Socket: AM5
  • CPU Support: AMD Ryzen 9000 Series

  • Memory
  • Type: DDR5
  • Capacity: Up to 96GB
  • Slots: 2 × DIMM
  • Speed: Up to 8400+ MT/s (OC)
  • ECC Support: Non-ECC, un-buffered

  • Expansion Slots
  • 1 × PCIe 5.0 x16 (SafeSlot)
  • 1 × PCIe 4.0 x16 (x4 mode)

  • Storage
  • 2 × M.2 Slots
  – M.2_1: PCIe 5.0 x4 (2280)
  – M.2_2: PCIe 4.0 x4 (2242/2260/2280)
  • 4 × SATA 6Gb/s

  • Graphics Support
  • Integrated Graphics: Depends on CPU
  • Outputs: 1 × HDMI, 1 × DisplayPort

  • Audio
  • Codec: Realtek ALC897
  • Channels: 7.1 HD Audio

  • USB Ports
  • Rear I/O:
  – 2 × USB 3.2 Gen2 Type-A
  – 1 × USB 3.2 Gen2 Type-C
  – 4 × USB 2.0
  • Internal Headers:
  – USB 3.2 Gen1
  – USB 2.0

  • LAN
  • Controller: Realtek RTL8125BG
  • Speed: 2.5Gb Ethernet

  • Cooling & Power
  • VRM Design: 8+2+1 phase digital
  • Fan Headers: 4 × PWM/DC

  • Features
  • ASUS AI Cache Boost
  • AEMP II
  • Armoury Crate
  • BIOS Flashback
  • M.2 heatsinks
  • 6-layer PCB

  • Form Factor: Micro-ATX
  • Dimensions: 244 × 244 mm
  • OS Support: Windows 10 / 11 64-bit
