Description
-

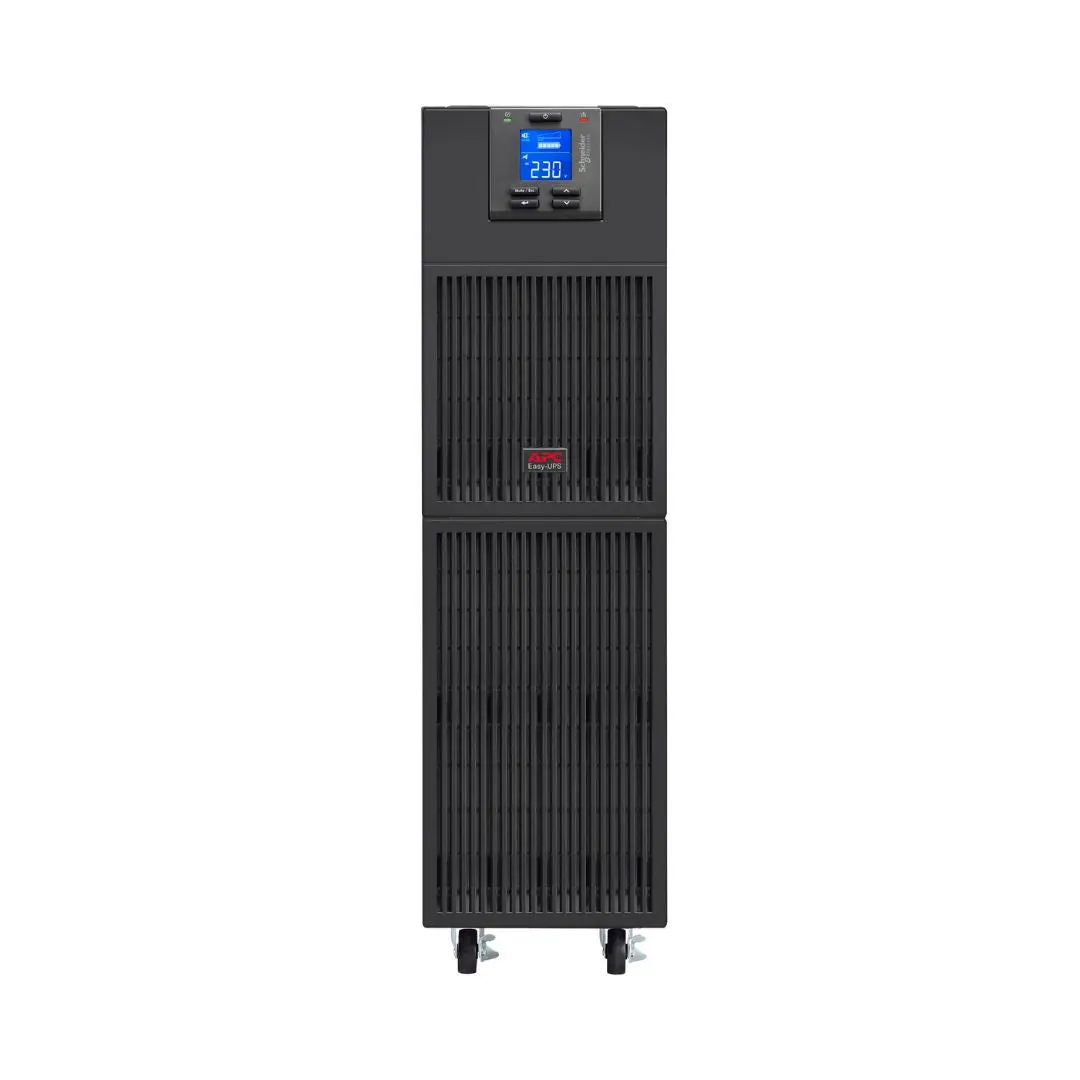

• Model: APC Easy Online SRV 6000VA 230V
• Type: Online Double‑Conversion UPS
• Capacity: 6000 VA / 6000 W
• Input Voltage: 230 V (single‑phase)
• Input Voltage Range: 110 – 300 V
• Input Frequency: 40 – 70 Hz (auto‑sensing)
• Output Voltage: 230 V ± 1%
• Output Frequency: 50/60 Hz ± 0.1 Hz (synchronized with mains)
• Output Waveform: Pure Sine Wave
• Efficiency: Up to 94% (online mode)
• Power Factor: 1.0 (unity)
• Battery Type: Sealed Lead‑Acid, maintenance‑free
• Battery Voltage: 240 V DC
• Backup Time: Depends on external battery packs (scalable runtime)
• Recharge Time: ~5 hours to 90% capacity
• Interfaces: RS‑232, USB, Smart Slot (optional SNMP card)
• Display: LCD panel with status indicators
• Protection: Overload, short circuit, surge, and battery deep discharge protection
• Dimensions: 455 × 190 × 337 mm (tower)
• Weight: ~55 kg
• Noise Level: < 55 dB at 1 meter
• Features:
– Online double‑conversion technology for consistent power quality
– Hot‑swappable battery design
– Scalable runtime with external battery packs
– Intelligent battery management for extended lifespan
– Compatible with APC management software for monitoring and control
